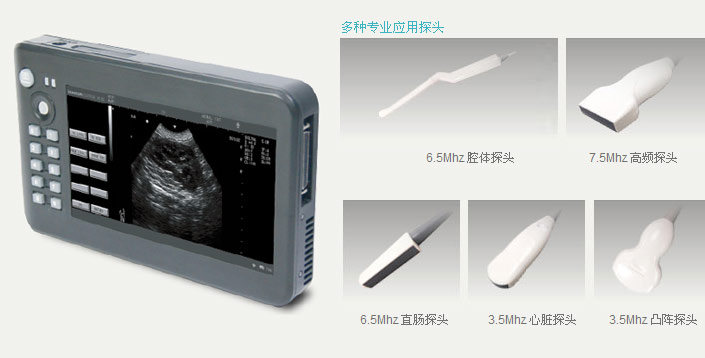

Veterinary Digital Ultrasound V100A
Performance
Image mode:                  B, B+B, 4B, B+M, M
Grey:                          256
Display:                       7” high-resolution TFT LCD
Probe frequency:              2.5~10.0 MHz
Probe connector:              1
Lateral resolution:             ≤3 mm (depth ≤80mm)
                                ≤4 mm (80mm≤depth ≤130mm)
longitudinal resolution:         ≤2 mm (depth ≤80mm)
                                ≤3 mm (80mm≤depth ≤130mm)
Detectable depth:              ≥160mm
Blind area:                     ≤5mm
Geometrical position distortion: Lateral ≤15
                                Longitudinal ≤10

Image processing
Pre-processing:       Continuously variable aperture
TGC (Near Middle Far)
Dynamic filtering
Dynamic Range
                       Edge enhancement
                       Frame correlation
                       Smooth
Post- processing       Gray map
                       Black/white reverse
                       Left/right reverse
                       Up/down reverse

Functions
Cine loop:              192-frame cine loop memory
Zoom:               X0.8X0.9X1.0X1.1X1.2X1.3X1.4X1.5
magnifications in real time
Permanent Storage:    1024
Storage media:         massive image-storage capacity
USB disk
SD card
Front panel control:     Brightness, overall gain of the image
Focusing method:       Automatic multi-stage focusing
OSD (On Screen Display):  Date, Time, age, sex ,Patient ID and hospital, information, Gain, Focusing, Comments, Scroll, Zoom setting
Measurements:             Distance, circumference, area/perimeter, volume, heart rate, pregnant week, fetal weight, etc.
Body-marks:                More than forty different body-markers
Adjustable biopsy guideline: Guidance for puncture
Sleep mode:                save energy and protect screen and probe
Parameter Preset:   Suitable present for different application (Gynecology, Heart, Abdomen)
Image mode:        B, B+B, 4B, B+M, M

Measurement & Calculations
B mode:                    Distance, circumference, area, volume
M mode:                    Distance, velocity, heart rate
Software packages:        Abdomen
(Distance, circumference, area, volume)
                                   GYN/OB (EDD,GA,BPD,GS,CRL,AD,AC,FL,HC,FTA,APTD,TTD,FW),
                                    Cardiology
(SAm, SL, SAi, SD, DAm, DL, DAi, DD, ESV, EDV, SV, EF)

Others
Peripheral port:  Video output 1
                 USB port 2
                      miniUSB2.0 port
Power supply:   AC 100~240V
                 50Hz/60Hz
Dimension (mm): 220(L)X135(W)X30(H)
Net weight:      700g

Standard Configurations:
V100A Main unit
7” high-resolution TFT LCD
1pc 5.0MHz rectal probe
one connector
192 frames cine-loop
1024 permanent storage
OB report
OB & GYN & Cardiac software
2 USB port & 1 mini2.0USB port
VALENX Li-ion battery
One bottle of gel

Options:
3.5MHz Convex probe
7.5MHz linear probe
5.0MHz Micro-convex probe
